Micro‑ATX lets you fit high‑quality fans, low‑profile coolers, and efficient VRM heat‑pipes into a tight case while keeping airflow paths clear, so you get desktop‑class cooling without the bulk. Its compact board layout creates open pathways around the CPU, RAM, and VRM, and the extra PCIe slots give you room for pumps or additional fans. You can also route cables neatly and use a slim PSU that doesn’t block airflow, making sustained workloads stay cool. Keep going and you’ll see how to fine‑tune each component for even better thermal performance.
Micro‑Atx Cooling: Maximize Airflow With a Compact Form Factor

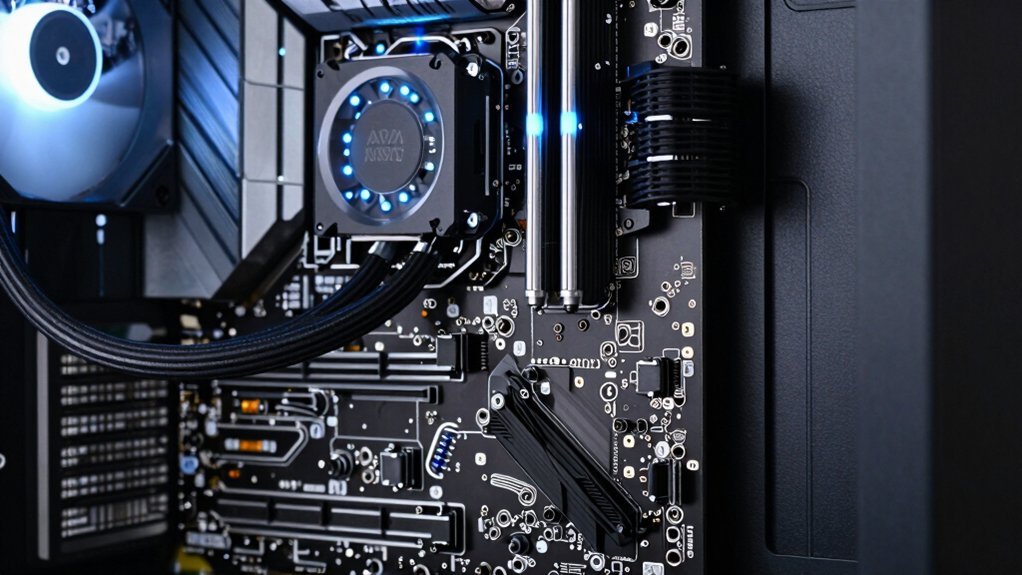

Ever wondered how a smaller case can still keep your components cool? You’ll find that microATX’s compact form factor doesn’t sacrifice airflow when you choose the right case design. Look for a chassis that channels air from front to back, with mesh panels and strategically placed vents that let the fans push cool air over the VRMs and GPU. Because microATX boards retain ATX‑style power and peripheral connectors, you can install the same high‑quality fans and heatsinks you’d use in larger builds. The extra PCIe slots on a microATX motherboard give you flexibility to add case or liquid‑cooling pumps without crowding the interior. By aligning the cooler’s intake with the case’s natural airflow path, you maintain lower temperatures while keeping the system sleek and space‑efficient. This efficiency is mirrored in how modern entertainment setups use open shelves, cable management, and ventilation features to prevent overheating in compact designs. open shelves
Micro‑ATX Cooling – Choose the Ideal CPU Cooler
Choosing the right CPU cooler for a micro‑ATX build means balancing performance with the limited space. Since MicroATX supports standard ATX power and peripheral interfaces, you can use common CPU coolers, but you should prioritize low‑profile or compact designs that fit tight interiors. Look for a cooler that offers strong airflow without over‑sized heat‑pipes, ensuring the VRMs receive enough cooling air. Dual‑fan units boost cooling but may clash with RAM modules, so a single‑fan, low‑profile air cooler often hits the sweet spot. Pair the cooler with well‑placed case fans to create a clear path for hot air to exit. By matching the cooler’s size to your compact case, you keep temperatures low while preserving the sleek MicroATX aesthetic. Optimizing component layout also helps maintain unobstructed airflow and easier cable management for a tidy build compact cooling benefits.
Micro‑ATX Cooling – Optimize Case Fan Placement

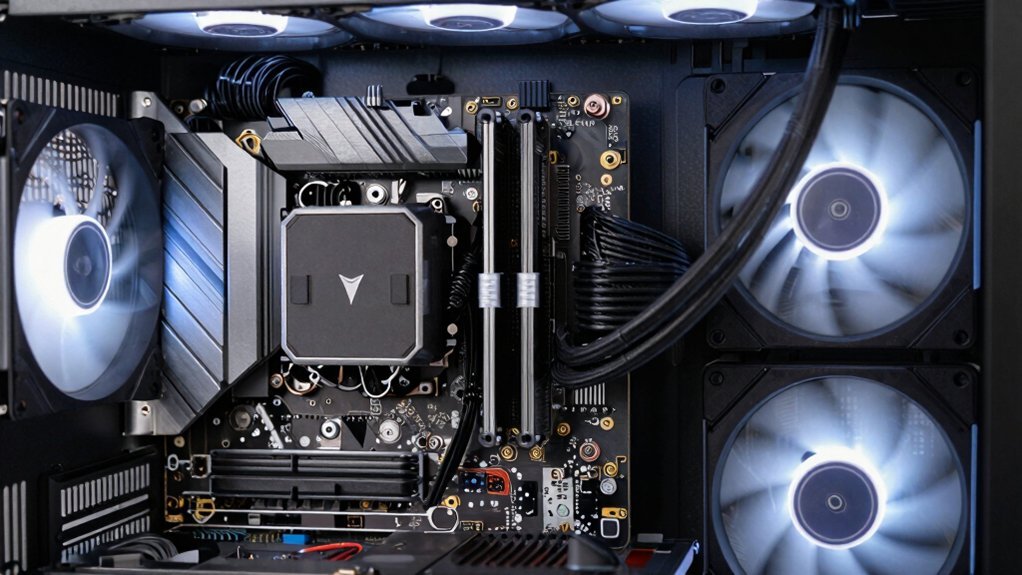

Where can you position fans to make the most of a Micro‑ATX board’s compact footprint? You’ll find the sweet spot at the front intake, top exhaust, and rear exhaust. The front draws cool air over the CPU and GPU, the top lifts hot air out, and the rear clears the motherboard tray. Use the board’s fan headers to power a 120 mm front fan, a 120 mm rear fan, and a 140 mm top fan. Pair them with an AIO cooler that mounts on the top or front, and you’ll keep airflow steady without choking the case. The choice of fans should also align with a budget-friendly setup that still supports ergonomic considerations for long sessions ventilated support to maintain steady temperatures.
Micro‑ATX Cooling – Leverage PCIe Slot Layout for GPU Heat Management
You can use the Micro‑ATX board’s 4‑6 PCIe slots to channel fresh air directly over your GPU, creating a clear path for heat to exit.
By positioning a dual‑ or tri‑slot GPU next to an empty slot, you give fans or shrouds room to push air through the card’s heatsink.
This strategic slot placement lets you target high‑power GPUs with focused airflow without crowding the compact case.
Upgrade Path is a consideration when selecting a motherboard for longer‑term cooling and component longevity.
Optimized PCIe Airflow
Because Micro‑ATX boards pack 4–6 PCIe slots into a compact 244 × 244 mm footprint, you can position the GPU and ancillary cards to create clear airflow corridors. The extra PCIe spacing lets you stagger a high‑performance GPU and a PCIe SSD adapter, leaving a dedicated lane for cool air to sweep past VRMs and exhaust heat. Compact cases often channel fans directly over the PCIe area, so the GPU cooling benefits from both intake and exhaust paths. Choosing a board with well‑placed PCIe slots and robust VRMs ensures efficient heat dissipation even when power draw spikes. PCIe slot layout guides airflow.
Strategic Slot Placement
Ever wondered how a Micro‑ATX board’s slot arrangement can tame GPU heat?
You’ll find that the Micro-ATX slot layout puts the primary PCIe x16 slot near the edge, giving the GPU a clear path for airflow and shorter power traces. By spreading auxiliary PCIe slots across the board, you can place expansion cards or a second GPU away from the heat‑dense zone, keeping hot and cool areas distinct. This strategic PCIe slots placement boosts cooling efficiency in compact cases, preventing one area from becoming a thermal bottleneck. Furthermore, you can add fan controllers or dummy loads to extra slots without crowding the main GPU, preserving airflow and maintaining optimal performance. The universal-fit approach described in the knowledge section highlights how edge-to-edge coverage and secure installation principles can metaphorically apply to ensuring unobstructed airflow paths around the GPU as well edge-to-edge coverage.
Micro‑ATX Cooling – Manage Power Cables to Reduce Heat

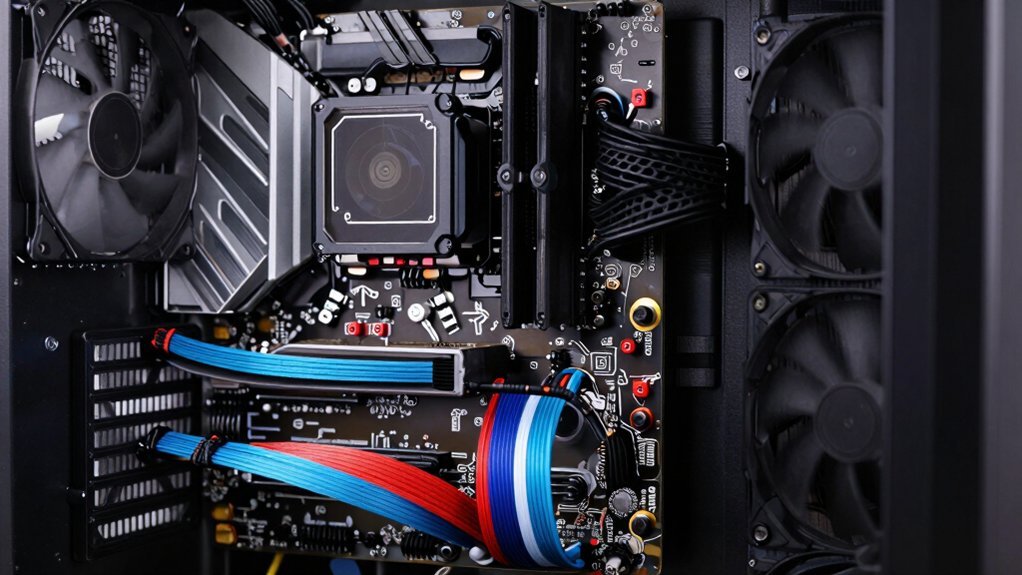

How can you keep a Micro‑ATX system cool when space is at a premium? In compact builds, every millimeter counts, and poorly routed power cables can choke airflow, raising temperatures on VRMs and the CPU. By tightening cable management, you let fans move air unimpeded, letting PSU rails stay efficient and the board stay cool. Proper cable organization with adhesive clips and self-adhesive organizers can further streamline airflow Cable Size Compatibility and reduce clutter.
- Bundle all power cables with zip ties or Velcro straps to create a tidy bundle.
- Route cables behind the motherboard tray, keeping them away from intake fans.
- Use short, high‑quality cables to reduce slack that blocks airflow.
- Separate GPU and CPU power leads, allowing dedicated airflow paths to each VRM.
These steps improve cooling, lower component heat, and keep your Micro‑ATX system performing optimally.
Micro‑ATX Cooling – Pick a Compact PSU Without Compromising Airflow
Choosing the right compact PSU for a Micro‑ATX build isn’t about sacrificing airflow; it’s about selecting a small‑form‑factor, high‑efficiency unit that keeps cables tidy and leaves space for unobstructed fan paths. A compact PSU reduces case clutter, improves cable management, and lets intelligent case design guide airflow straight to the heatsinks. Opt for modular cables to route power where it’s needed without blocking vents, and prioritize power supply efficiency ratings of 80 PLUS Gold or higher. This combination boosts cooling performance while preserving the sleek silhouette of a Micro‑ATX system.
| Feature | Benefit | Example |
|---|---|---|
| Compact PSU | Saves space | SFX‑type unit |
| Modular cables | Cleaner routing | Detachable connectors |
| High efficiency | Less heat | 80 PLUS Gold |
Micro‑ATX Cooling – Future‑Proof Cooling‑Friendly Features on Modern Boards
You’ll notice the board’s enhanced airflow design channels air directly over key components, while the integrated heatpipe VRM cooling keeps power delivery cool under load.
The modular fan mount options let you add or reposition fans without redesigning the case, and these features together future‑proof your compact build.
This means you can upgrade CPUs or GPUs later without worrying about thermal bottlenecks.
Enhanced Airflow Design
Ever wonder why a Micro‑ATX board feels so breezy despite its size? You’ll notice the layout pushes air straight over the CPU, memory, and VRMs, keeping thermals low without cramming components. The board’s case‑friendly profile leaves generous clearance, so a single high‑static‑pressure fan can sweep across the whole board. Plus, multiple fan headers with PWM control let you fine‑tune each fan’s curve, matching cooling solutions to load spikes.
- Optimized component spacing reduces airflow blockage.
- Larger VRM heatsinks spread heat evenly.
- Dedicated fan headers support up to four PWM fans.
- Open‑air pathways around the socket and RAM slots improve overall airflow.
Integrated Heatpipe VRM Cooling
The airflow advantage of a Micro‑ATX board sets the stage for its next‑level thermal solution: integrated heatpipe VRM cooling. You’ll notice how the heatpipe VRM cooling sits flush with the PCB, pulling power delivery heat away without crowding clearance. This compact design lets you keep M.2 heatsinks and a multi‑slot PCIe layout while preserving a clean thermal design. Stability rises during sustained workloads and modest overclocking, and the board stays future‑proof for tighter cases.
| Feature | Benefit |
|---|---|
| Heatpipe VRM cooling | Efficient heat removal |
| Compact builds | Space‑saving footprint |
| M.2 heatsinks | Balanced component temps |
| Multi‑slot PCIe | High‑speed expansion |
| Power delivery heat | Stable VRM performance |
Modular Fan Mount Options
Modern Micro‑ATX boards now ship with a suite of labeled fan headers—CPU, chassis, and hybrid PWM/DC—plus extra connectors positioned near RAM and VRM zones, letting you tailor airflow for tight cases. You can mix and match fans to create a smart cooling layout that maximizes airflow optimization while staying within case compatibility limits. AI fan control lets you fine‑tune curves for VRM cooling and overall system temperature, future‑proofing your build.
- Top‑mount fan hub – places a 120 mm fan directly over the VRM for targeted cooling.
- Rear‑panel modular mount – adds a rear fan without sacrificing PCIe clearance.
- Side‑panel fan bracket – aligns a fan with the RAM array to improve case airflow.
- Hybrid PWM/DC header – supports both PWM and DC fans, giving you flexible speed control for any modular cooling setup.
Micro‑Atx Cooling – Budget Gaming Build Example With Effective Cooling
Looking for a budget‑friendly gaming rig that still stays cool? You’ll love a MicroATX board that packs solid cooling into a compact build. Choose a model with robust VRM cooling, several M.2 slots, and enough PCIe slots for a mid‑range GPU and a couple of SSDs. Pair it with a slim 120 mm tower fan or a 240 mm AIO cooler that fits the case’s optimized airflow path. The case’s front intake and rear exhaust create a steady breeze that sweeps heat away from the CPU and GPU, while the board’s layout leaves room for extra fans if needed. This combination delivers low temperatures under load without breaking the budget, proving that a MicroATX cooling can be both affordable and effective.
Frequently Asked Questions
Is There a Downside to Microatx?
Yes, you’ll face fewer PCIe slots, limited RAM capacity, and tighter space for large coolers or long GPUs, which can restrict extreme multi‑GPU builds and high‑end overclocking.
What Is the Point of Microatx?
You get a balanced, space‑saving platform that fits tighter cases while still offering multiple RAM slots, PCIe lanes, and modern features—so you can build powerful, expandable PCs without a full‑size ATX footprint.
Which Has Better Airflow, Mini-Itx or Microatx?
MicroATX gives you better airflow than Mini‑ITX because its larger interior lets you place more fans and larger coolers, and its flexible layout reduces airflow restrictions in tight builds.
Is ATX Worth It Over mATX?
You’ll find ATX worth it only if you need extra slots, larger VRM heatsinks, or more extensive cooling; otherwise, Micro‑ATX gives similar performance, lower cost, and a tighter footprint that still handles high‑end components.
In Summary
By embracing Micro‑ATX, you squeeze top‑tier airflow into a tight space without sacrificing performance. Thoughtful fan placement, efficient cable routing, and a compact PSU keep heat at bay, while the board’s layout lets you target GPU and CPU hot spots precisely. You’ll get a sleek, budget‑friendly build that stays cool, runs quietly, and remains ready for future upgrades—all in a form factor that fits almost any desk or case.
